Product Summary

The 82HS321A/BJA is field programmable, which means that custom patterns are immediately available by following the Philips Semiconductors Generic II fusing procedure. The device is supplied with all outputs at a logic high. It includes on-chip decoding and 2 chip enable inputs for ease of memory expansion. It features 3-state outputs for optimization of word expansion in bused organizations.

Parametrics

Absolute maximum ratings: (1)Vcc, supply voltage: 7v; (2)Vi, input voltage: 5.5v; (3)Vo, output voltage off-state:5.5v; (4)Tstg, storage temperature range: -65 to 150℃.

Features

Features: (1)address access time: 45ns max; (2)input loading:-250uA max; (3)two chip enable inputs; (4)on-chip address decoding; (5)no separate fusing pins; (6)unprogrammed outputs are high level; (7)fully TTL compstible; (8)outputs:3-state; (9)for slower speed options see SMD B2008.

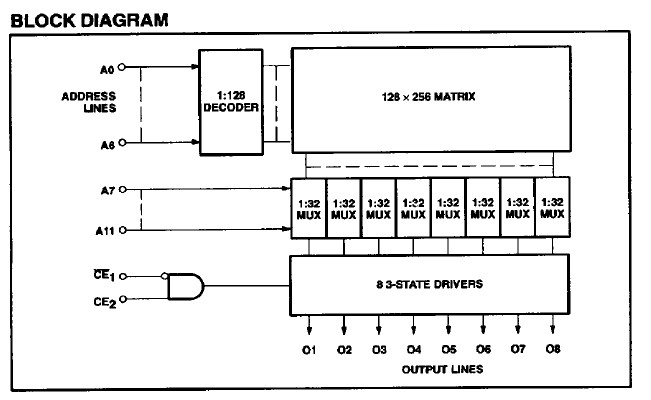

Diagrams
