Product Summary
The CA3162E is a I2L monolithic A/D converter that provide a 3 digit multiplexed BCD output. It is used with the CA3161E BCD-to-Seven-Segment Decoder/Driver and a minimum of external parts to implement a complete 3-digit display. It is featured with dual slope a/d conversion, multiplexed bcd display, ultra stable internal band gap voltage reference, capable of reading 99mv below ground with single supply. The CA3161E is described in the Display Drivers section of this data book.
Parametrics
Absolute maximum ratings: (1)DC Supply Voltage (Between Pins 7 and 14):+7V; (2)Input Voltage (Pin 10 or 11 to Ground):±15V; (3)Temperature Range, CA3162E:0 to 75oC; (4)Thermal Resistance (Typical, Note 1) θJA (oC/W), PDIP Package:90; (5)Maximum Junction Temperature:150oC; (6)Maximum Storage Temperature Range:-65oC to 150oC; (7)Maximum Lead Temperature (Soldering 10s):300oC.
Features
Features: (1)Dual Slope A/D Conversion; (2)Multiplexed BCD Display; (3)Ultra Stable Internal Band Gap Voltage Reference; (4)Capable of Reading 99mV Below Ground with Single Supply; (5)Differential Input; (6)Internal Timing - No External Clock Required; (7)Choice of Low Speed (4Hz) or High Speed (96Hz)Conversion Rate; (8)“Hold” Inhibits Conversion but Maintains Delay; (9)Extended Temperature Range Version Available.

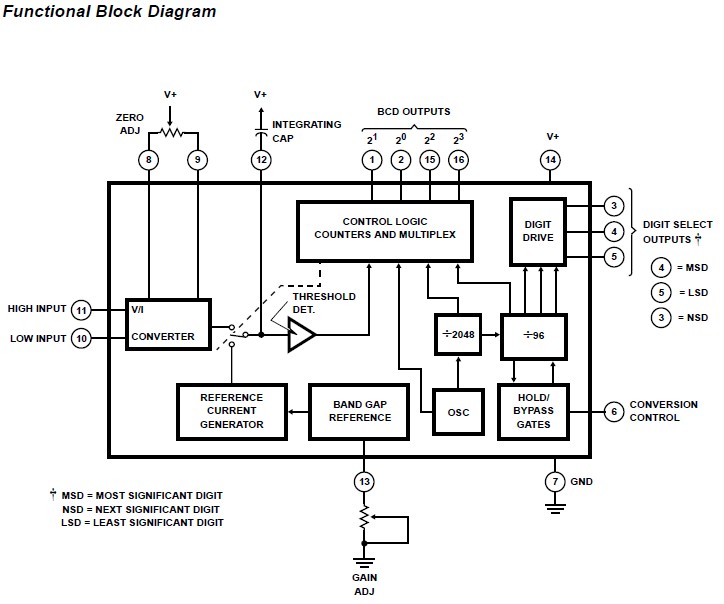

Diagrams
