Product Summary
The GDS1111BA is a Intel-StrongARM SA-1110 Microprocessor (SA-1110), which is a general-purpose, 32-bit RISC microprocessor with a 16 Kbyte instruction cache (Icache), an 8 Kbyte write-back data cache (Dcache), a minicache, a write buffer, a read buffer, an MMU, an LCD controller, and serial I/O combined in a single component. The GDS1111BA provides portable applications with high-end computing performance without requiring users to sacrifice available battery time.
Parametrics
Characteristics: (1)Voltage, Power, Temperature, Process, Packaging: 150 Dhrystone 2.1 MIPS at 133 MHz; 235 Dhrystone 2.1 MIPS at 206MHz; (2)VDD, Minimum internal power supply voltage:1.47v at 133 MHz; 1.65v at 206MHz; Nominal internal power supply voltage: 1.55v at 133 MHz; 1.75v at 206MHz; maximum internal power supply voltage:1.63v at 133 MHz; 2.10v at 206MHz; (3)VDDX,Minimum external power supply voltage:3.00v at 133 MHz; 3.00v at 206MHz; Nominal external power supply voltage:3.3v at 133 MHz; 3.3v at 206MHz; maximum external power supply voltage: 3.6v at 133 MHz; 3.6v at 206MHz; (4)Typical power dissipation ?: Normal mode = <240 mW, Idle mode = <75 mW, Sleep mode = <50 μA at 133 MHz; Normal mode = <400 mW, Idle mode = <100 mW, Sleep mode = <50 μA at 206MHz; (5)Ambient operating temperature: 0°C ( 32°F) min, 70°C (158°F) max at 133 MHz; 0°C ( 32°F) min, 70°C (158°F) max at 206MHz; (6)Storage temperature: –20°C to +125°C(–4°F to +257°F) at 133 MHz; –20°C to +125°C(–4°F to +257°F) at 206MHz; (7)Packaging: 256 mBGA at 133 MHz; 256 mBGA at 206MHz; (8)Process technology: .35 μm, 3-layer metal at 133 MHz; .35 μm, 3-layer metal at 206MHz; (9)Transistor count: 2.5 million at 133 MHz; 2.5 million at 206MHz.
Features
Features of the GDS1111BA are:(1)High performance: 150 Dhrystone 2.1 MIPS @ 133 MHz and 235 Dhrystone 2.1 MIPS @ 206 MHz;(2)Low power (normal mode): < 240 mW @1.55 V/133 MHz and < 400 mW @1.75 V/206 MHz;(3)Integrated clock generation: Internal phase-locked loop (PLL) and 3.686-MHz oscillator;(4)Power-management features: Normal (full-on) mode and Idle (power-down) mode;(5)Idle (power-down) mode;(6)32-way set-associative caches: 16 Kbyte instruction cache and 8 Kbyte write-back data cache;(7)32-entry MMUs Maps 4 Kbyte, 8 Kbyte, or 1 Mbyte.
Diagrams

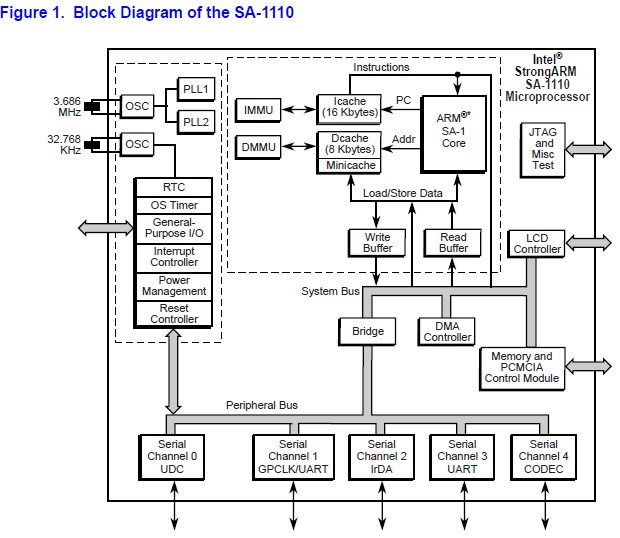

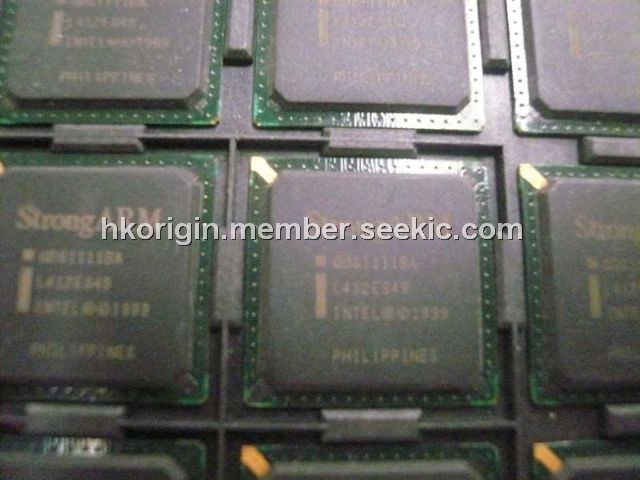

Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GDS1111BA |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
