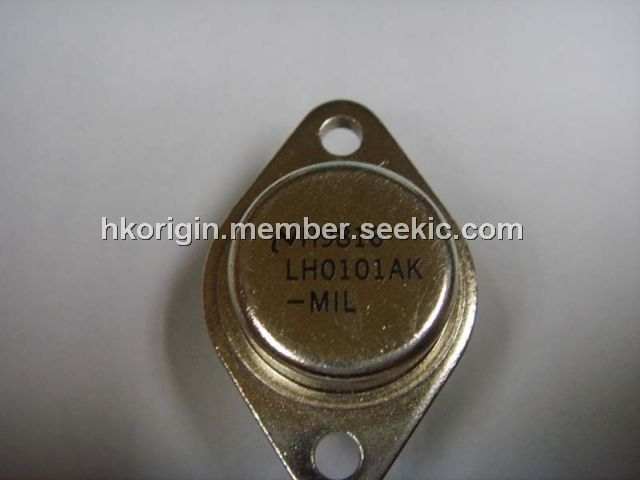

The LH0101AK-MIL is a wideband power operational amplifier featuring FET inputs, internal compensation, virtually no crossover distortion, and rapid settling time. These features make the LH0101AK-MIL an ideal choice for DC or AC servo amplifiers, deflection yoke drives, programmable power supplies, and disk head positioner amplifiers. The LH0101AK-MIL is packaged in an 8 pin TO-3 hermetic package, rated at 60 watts with a suitable heat sink.
Parametrics
Absolute maximum ratings: (1)Supply Voltage, VS: ±22V; (2)Power Dissipation at TA e 25℃, Derate linearly at 25℃/W to zero at 150℃, PD: 5W; (3)Power Dissipation at TC e 25℃, Derate linearly at 2℃/W to zero at 150℃: 62W; (4)Differential Input Voltage, VIN: ±40V but < ±VS; (5)Input Voltage Range, VCM: ±20V but < ±VS; (6)Peak Output Current (50 ms pulse), IO(PK): 5A; (7)Output Short Circuit Duration(within rated power dissipation,RSC e 0.35X, TA e 25℃): Continuous; (8)Operating Temperature Range, TA, LH0101A: -55℃ to +125℃; (9)Storage Temperature Range, TSTG: -65℃ to +150℃; (10)Maximum Junction Temperature, TJ: 150℃; (11)Lead Temperature (Soldering k10 sec.): 260℃.
Features
Features: (1)5 Amp peak, 2 Amp continuous output current; (2)300 kHz power bandwidth; (3)850 mW standby power (g15V supplies); (4)300 pA input bias current; (5)10 V/ms slew rate; (6)Virtually no crossover distortion; (7)2 ms settling time to 0.01%; (8)5 MHz gain bandwidth.
