Product Summary
Developed for use with low-voltage LED and incandescent displays requiring low output saturation voltage, the UDN2595A is a 8-channel saturated sink driver which meets many interface needs, including those exceeding the capabilities of standard logic buffers. The eight non-Darlington outputs of each driver can continuously and simultaneously sink load currents of 100 mA at ambient temperatures of up to +75°C. The eight-channel driver’s active-low inputs can be driven directly from TTL, Schottky TTL, DTL, 5 to 16 V CMOS, and NMOS logic. The driver is packaged in plastic DlPs (suffix A) or surfacemountable wide-body SOlCs (suffix LW), and are rated for operation over the temperature range of -20°C to +85°C.
Parametrics
Absolute maximum ratings at 25°C free-air temperaturefor any one driver(unless otherwise noted): (1)Output Voltage, VCE:20 V; (2)Supply Voltage, VS:20 V; (3)Input Voltage, VIN:20 V; (4)Output Current, lC:200 mA; (5)Ground Terminal Current, IGND:1.6 A; (6)Package Power Dissipation,PD:See Graph; (7)Operating Temperature Range, TA:-20°C to +85°C; (8)Storage Temperature Range, TS:-55°C to +150°C.
Features
Features: (1)Non-Inverting Function(Input Low = Output ON); (2)200 mA Current Rating; (3)100 mA Continuous and Simultaneous(All outputs) to +85°C; (4)Low Saturation Voltage; (5)TTL, CMOS, NMOS Compatible; (6)Efficient Input/Output Pin Format; (7)DIP or SOIC Packaging.

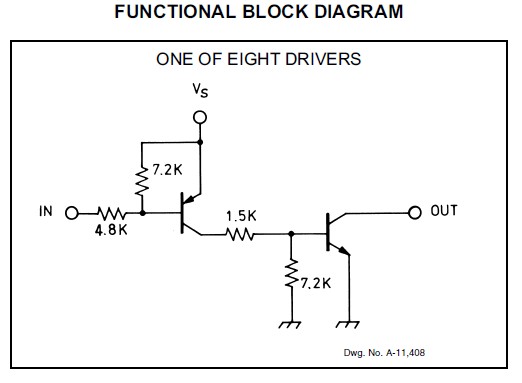

Diagrams
 |
