Product Summary

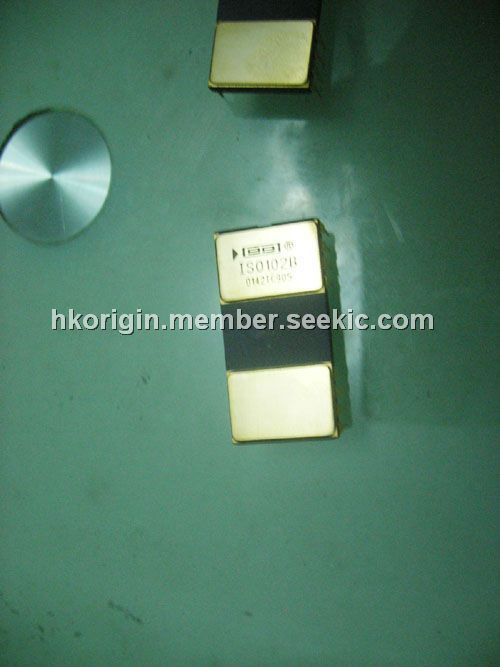

The ISO102B is a isolation buffer amplifier rated for 1500Vrms in a 24-pin DIP. Both side-brazed DIPs are 600mil wide and have industry standard package dimensions with the exception of missing pins between input and output stages. This permits utilization of automatic insertion techniques in production. The three-chip hybrid with its generous high voltage spacing is easy to use. The ISO102B is used in transducer channel isolator for thermocouples, RTDs, pressure bridges, flow meters.
Parametrics
Absolute maximum ratings: (1)Supply Without Damage:±20V; (2)Input Voltage Range:±50V; (3)Transient Immunity, dV/dt:100kV/ms; (4)Continuous Isolation Voltage Across Barrier,ISO102:1500Vrms; (5)Junction Temperature:+160°C; (6)Storage Temperature Range:–65°C to +150°C; (7)Lead Temperature (soldering, 10s):+300°C; (8)Amplifier and Reference Output, Short Circuit Duration: Continuous to Common.
Features
Features: (1)14-bit linearity; (2)industry’s first hermetic isolation amplifiers at low cost; (3)easy-to-use complete circuit; (4)rugged barrier, hv ceramic capacitors; (5)100% tested for high voltage breakdown: iso102: 4000vrms/10s, 1500vrms/1min; (6)wide input range: –10v to +10v; (7)wide bandwidth: 70khz; (8)voltage reference outpuT: 5VDC.

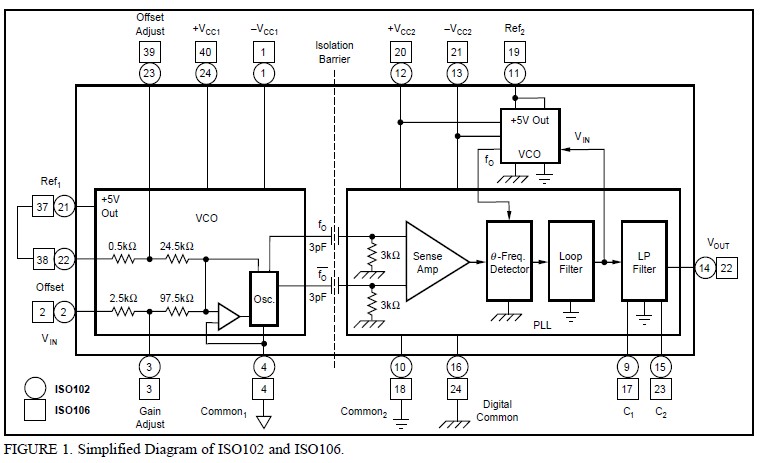

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISO102B |
Texas Instruments |
Isolation Amplifiers Wide BW Std Herm Sig Iso Buffer Amp |
Data Sheet |
|
|
||||||||
