Product Summary
The ICE3B0565 is the new generation CoolSET-F3, which provides Active Burst Mode to reach the lowest Standby Power Requirements <100mW at no load. As the controller is always active during Active Burst Mode, there is an immediate response on load jumps without any black out in the SMPS. In Active Burst Mode the ripple of the output voltage can be reduced <1%. Furthermore, to increase the robustness and safety of the system, the device enters into Auto Restart Mode in the cases of Overtemperature, VCC Overvoltage, Output Open Loop or Overload and VCC Undervoltage. By means of the internal precise peak current limitation, the dimension of the transformer and the secondary diode can be lowered which leads to more cost efficiency. An adjustable blanking window prevents the IC from entering Auto Restart or Active Burst Mode unintentionally during high load jumps. The CoolSET-F3 family consists a wide power class range of products for various applications.
Parametrics
Absolute maximum ratings: (1)EAR2:0.01 mJ max; (2)IAR2:0.5 A max; (3)VCC Supply Voltage, VVCC: -0.3 to 22V; (4)FB Voltage, VFB: -0.3 to 6.5 V; (5)SoftS Voltage, VSoftS: -0.3 to 6.5 V; (6)CS Voltage, VCS: -0.3 to 6.5 V; (7)Junction Temperature, Tj: -40 to 150 °C, Controller & CoolMOS ; (8)Storage Temperature, TS: -55 to 150 °C; (9)ESD Capability(incl. Drain Pin), VESD:3 kV max, Human body model.
Features
Features: (1)650V Avalanche Rugged CoolMOSwith built in switchable Startup Cell; (2)Active Burst Mode for lowest Standby Power @ light load controlled by Feedback Signal; (3)Fast Load Jump Response in Active Burst Mode; (4)67 kHz fixed Switching Frequency; (5)Auto Restart Mode for Over temperature Detection; (6)Auto Restart Mode for Overvoltage Detection; (7)Auto Restart Mode for Overload and Open Loop; (8)Auto Restart Mode for VCC Undervoltage; (9)User defined Soft Start; (10)Minimum of external Components required; (11)Max Duty Cycle 75%; (12)Overall Tolerance of Current Limiting < ±5%; (13)Internal Leading Edge Blanking; (14)BiCMOS technology provides wide VCC Range; (15)Frequency Jittering for Low EMI.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

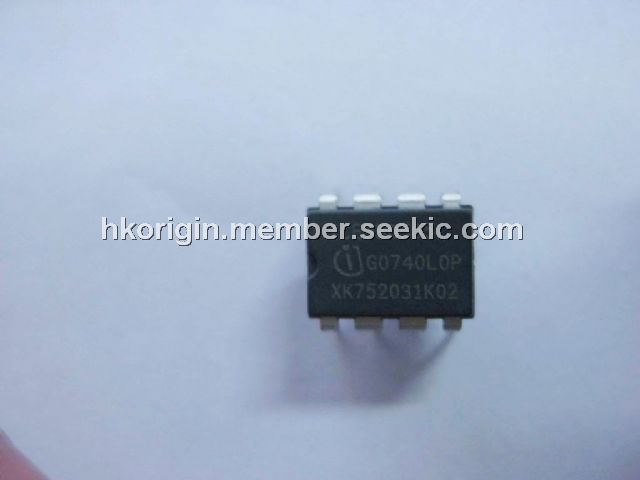

ICE3B0565 |
Infineon Technologies |
Current Mode PWM Controllers Off-Line SMPS Currnt Mode CTRLR 650V |
Data Sheet |
|
|
|||||||||||||
ICE3B0565J |
Infineon Technologies |
Current Mode PWM Controllers Off-Line SMPS Currnt Mode CTRLR 650V |
Data Sheet |
|
|
|||||||||||||
ICE3B0565JG |
Infineon Technologies |
Current Mode PWM Controllers Off-Line SMPS Currnt Mode CTRLR 650V |
Data Sheet |
|
|
