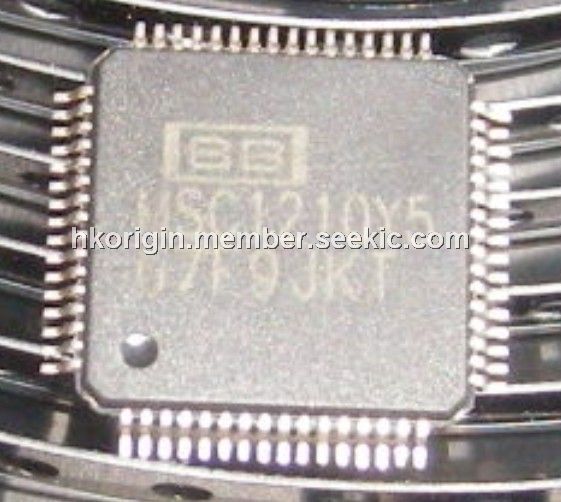

Product Summary
The MSC1210Y5PAGR is designed as one kind of precision analog-to-digital converter (ADC) device that can be used in wide range of applications such as (1)industrial process control; (2)instrumentation; (3)liquid/gas chromatography; (4)blood analysis; (5)smart transmitters; (6)portable instruments; (7)weigh scales; (8)pressure transducers; (9)intelligent sensors; (10)portable applications; (11)DAS systems.
Parametrics
Absolute maximum ratings:(1)Output pin short-circuit: 10 s;(2)Output current, all pins: 200 mA;(3)Package power dissipation: (TJ Max- TAMBIENT)/JA W;(4)Lead temperature (soldering, 10s): +235 °C;(5)Storage temperature range: -65 to +150 °C;(6)Operating temperature range: -40 to +85 °C;(7)Maximum junction temperature: 150 °C;(8)Digital input voltage to DGND: -0.3 to DVDD+0.3 V;(9)Digital output voltage to DGND: -0.3 to DVDD+0.3 V.
Features
Features: (1)8 Differential/Single-Ended Channels; (2)On-Chip Offset/Gain Calibration; (3)Offset Drift: 0.02ppm/°C; (4)Gain Drift: 0.5ppm/°C; (5)On-Chip Temperature Sensor; (6)Burnout Sensor Detection; (7)Single-Cycle Conversion; (8)Selectable Buffer Input; (9)Pin-Compatible with MSC1211/12/13/14; (10)Package: TQFP-64; (11)Low Power: 4mW; (12)Industrial Temperature Range: -40°C to +85°C; (13)Power Supply: 2.7V to 5.25V; (14)Up To 32kB Flash Memory; (15)Flash Memory Partitioning; (16)Endurance 1M Erase/Write Cycles, 100 Year Data Retention; (17)In-System Serially Programmable; (18)External Program/Data Memory (64kB); (19)1,280 Bytes Data SRAM.

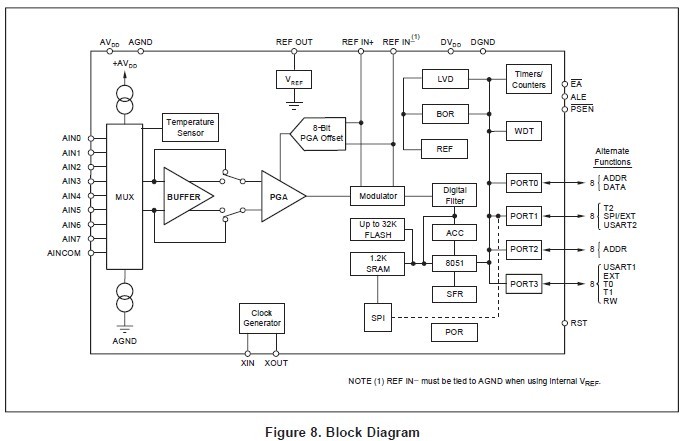

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MSC1210Y5PAGR |
Texas Instruments |
ADC (A/D Converters) Prec ADC w/ 8051 Mcntrl & Flash |
Data Sheet |
|
|
|||||||||
MSC1210Y5PAGRG4 |
Texas Instruments |
ADC (A/D Converters) Prec ADC w/ 8051 Mcntrl & Flash |
Data Sheet |
|
|
