Product Summary
The XC2V3000-5FF1152C is a platform FPGA developed for high performance from low-density to high-density designs that are based on IP cores and customized modules. The family delivers complete solutions for telecommunication, wireless, networking, video, and DSP applications, including PCI, LVDS, and DDR interfaces. Combining a wide variety of flexible features and a large range of densities up to 10 million system gates, the XC2V3000-5FF1152C enhances programmable logic design capabilities and is a powerful alternative to mask-programmed gates arrays.
Parametrics
Members and characteristics: (1)System Gates:3M; (2)CLB(1 CLB = 4 slices = Max 128 bits):Array Row x Col: 64 x 56; Slices:14,336; Maximum Distributed RAM Kbits: 448; (3)Multiplier Blocks:96; (4)SelectRAM Blocks: 18-Kbit Blocks:96; Max RAM (Kbits):1728; (5)DCMs:12; (6)Max I/O Pads(1):720; (7)SRAM-Based In-System Configuration: Fast SelectMAP- configuration; Triple Data Encryption Standard (DES) security option (Bitstream Encryption); IEEE1532 support; Partial reconfiguration; Unlimited re-programmability; Readback capability.
Features
Features: (1)Industry First Platform FPGA Solution; (2)IP-ImmersionArchitecture; (3)Active Interconnect Technology: Fourth generation segmented routing structure; Predictable, fast routing delay, independent of fanout; (4)0.15 μm 8-Layer Metal process with 0.12 μm high-speed transistors; (5)1.5 V (VCCINT) core power supply, dedicated 3.3 V VCCAUX auxiliary and VCCO I/O power supplies; (6)IEEE 1149.1 compatible boundary-scan logic support; (7)Flip-Chip and Wire-Bond Ball Grid Array (BGA) packages in three standard fine pitches (0.80mm, 1.00mm, and 1.27mm); (8)100% factory tested.

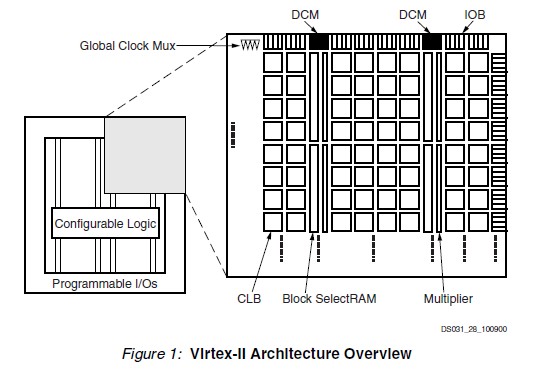

Diagrams
 |
